Full inspection ensures arc accuracy within a tolerance of 5μm.
Suitable for machining heat-treated high-hardness materials with angles between 48–65°.
Applicable to commonly used hardened mold steels, tool steels, high-speed steels, and other high-hardness materials for long tool life machining.
Compatible with dry cutting, oil cutting, and water-based cutting.
The milling cutter is passivated to enhance tool life and surface finish.
Suitable for use on high-speed machining centers.
HM Series: Original carbide （Co 9%, 0.2μm grain size)

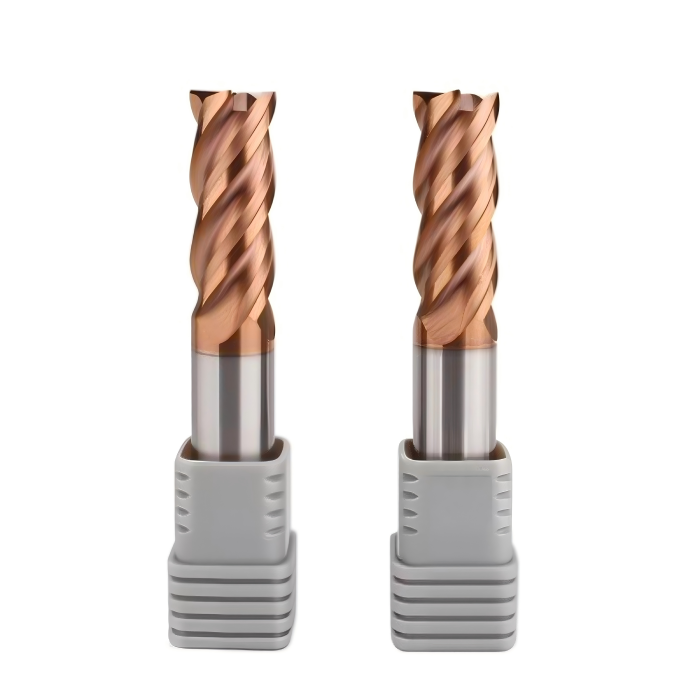

Square End Mill for Steel 4F
| Specification | Flute Dia (mm) | Flute Length (mm) | Shank Dia (mm) | Overall Length (mm) | |
| 1.0×4D×50L-4T | 1.0 | 3 | 4 | 50 | |
| 1.5×4D×50L-4T | 1.5 | 4 | 4 | 50 | |
| 2.0×4D×50L-4T | 2.0 | 6 | 4 | 50 | |
| 2.5×4D×50L-4T | 2.5 | 7.5 | 4 | 50 | |
| 3.0×3D×50L-4T | 3.0 | 8 | 3 | 50 | |
| 3.0×4D×50L-4T | 3.0 | 8 | 4 | 50 | |
| 4.0×4D×50L-4T | 4.0 | 10 | 4 | 50 | |
| 5.0×5D×50L-4T | 5.0 | 12 | 5 | 50 | |
| 5.0×6D×50L-4T | 5.0 | 12 | 6 | 50 | |
| 6.0×6D×50L-4T | 6.0 | 15 | 6 | 50 | |
| 6.0×6D×60L-4T | 6.0 | 15 | 6 | 60 | |
| 8.0×8D×60L-4T | 8.0 | 20 | 8 | 60 | |
| 10.0×10D×75L-4T | 10.0 | 25 | 10 | 75 | |
| 12.0×12D×75L-4T | 12.0 | 30 | 12 | 75 | |
| 4.0×4D×75L-4T | 4.0 | 12 | 4 | 75 | |
| 6.0×6D×75L-4T | 6.0 | 18 | 6 | 75 | |
| 8.0×8D×75L-4T | 8.0 | 24 | 8 | 75 | |
| 4.0×4D×100L-4T | 4.0 | 12 | 4 | 100 | |
| 6.0×6D×100L-4T | 6.0 | 18 | 6 | 100 | |
| 8.0×8D×100L-4T | 8.0 | 24 | 8 | 100 | |
| 10.0×10D×100L-4T | 10.0 | 30 | 10 | 100 | |
| 12.0×12D×100L-4T | 12.0 | 36 | 12 | 100 | |
| 8.0×8D×150L-4T | 8.0 | 24 | 8 | 150 | |
| 10.0×10D×150L-4T | 10.0 | 30 | 10 | 150 | |
| 12.0×12D×150L-4T | 12.0 | 36 | 12 | 150 | |
