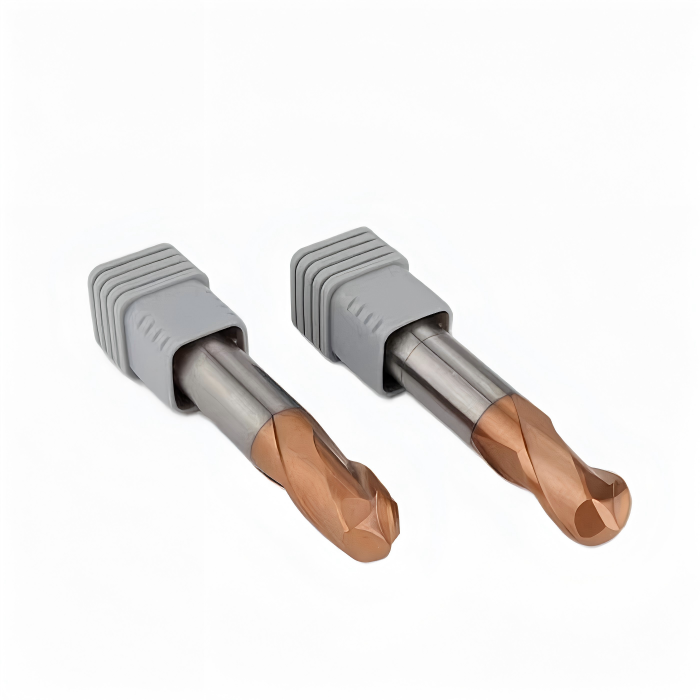

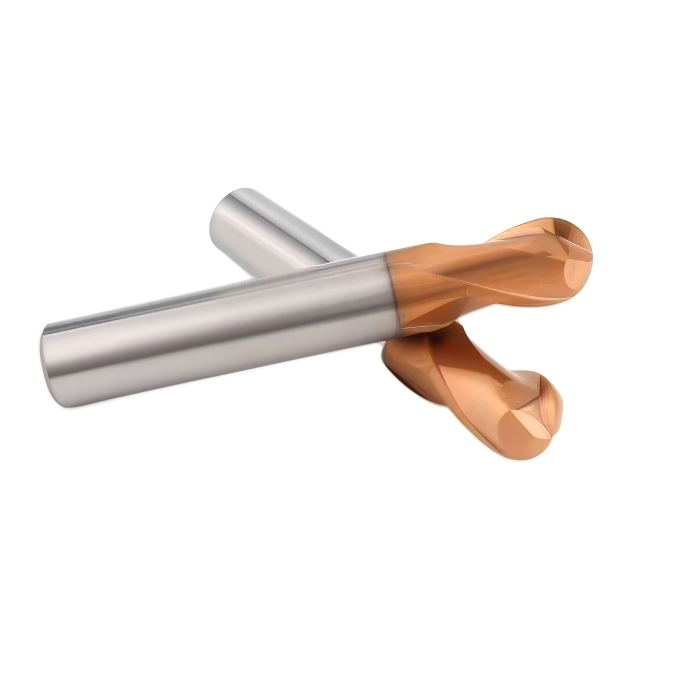

The HM Series 2-Flute Carbide Ball Nose End Mill is designed for precision 3D contouring and finishing of hardened materials (48–65 HRC), including die steel, tool steel, and high-speed steel.
Each tool is fully inspected to ensure ball radius accuracy within 5μm tolerance for excellent dimensional control and surface quality. Micro-edge honing enhances edge strength, reduces chipping, and extends tool life.
Suitable for dry, oil, or wet cutting, it is optimized for high-speed machining centers and ideal for high-precision mold and die applications requiring superior finish and durability.
HM Ballnose End Mill for Steel 2F
| Specification | Flute Dia (mm) | Flute Length (mm) | Effective Length(mm) | Shank Dia (mm) | Overall Length (mm) |
| R0.5×4D×50L-2T | R0.5 | 0.8 | 2 | 4 | 50 |
| R0.75×4D×50L-2T | R0.75 | 1.2 | 3 | 4 | 50 |
| R1.0×4D×50L-2T | R1.0 | 1.6 | 4 | 4 | 50 |
| R1.25×4D×50L-2T | R1.25 | 2 | 5 | 4 | 50 |
| R1.5×4D×50L-2T | R1.5 | 2.4 | 6 | 4 | 50 |
| R2.0×4D×50L-2T | R2.0 | 6 | 4 | 50 | |
| R2.5×6D×50L-2T | R2.5 | 4 | 12 | 6 | 50 |
| R3.0×6D×50L-2T | R3.0 | 9 | 6 | 50 | |
| R3.0×6D×60L-2T | R3.0 | 9 | 6 | 60 | |
| R4.0×8D×60L-2T | R4.0 | 12 | 8 | 60 | |
| R5.0×10D×75L-2T | R5.0 | 15 | 10 | 75 | |
| R6.0×12D×75L-2T | R6.0 | 18 | 12 | 75 | |
| R2.0×4D×75L-2T | R2.0 | 6 | 4 | 75 | |
| R3.0×6D×75L-2T | R3.0 | 9 | 6 | 75 | |
| R4.0×8D×75L-2T | R4.0 | 12 | 8 | 75 | |
| R2.0×4D×100L-2T | R2.0 | 6 | 4 | 100 | |
| R3.0×6D×100L-2T | R3.0 | 9 | 6 | 100 | |
| R4.0×8D×100L-2T | R4.0 | 12 | 8 | 100 | |
| R5.0×10D×100L-2T | R5.0 | 15 | 10 | 100 | |
| R6.0×12D×100L-2T | R6.0 | 18 | 12 | 100 | |
| R4.0×8D×150L-2T | R4.0 | 12 | 8 | 150 | |
| R5.0×10D×150L-2T | R5.0 | 15 | 10 | 150 | |
| R6.0×12D×150L-2T | R6.0 | 18 | 12 | 150 |
