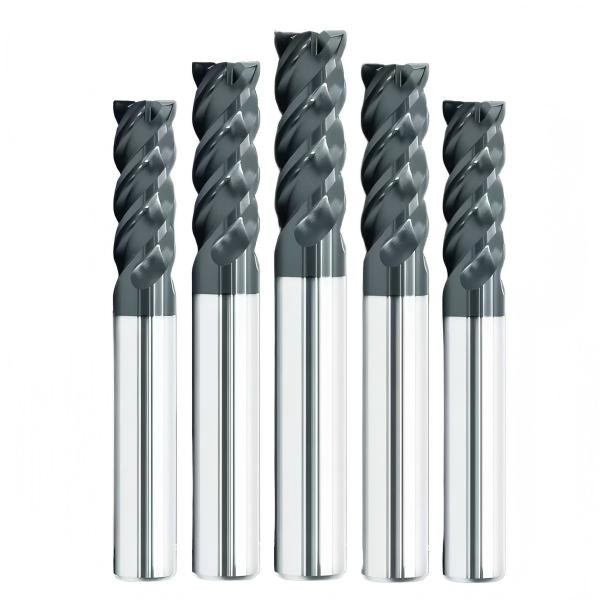

High Efficiency General Purpose 4F Square End Mill for Steel

Application：
Material: Carbon steel, Alloy steel, Tool steel, Stainless steel, Cast iron, High-hardness steel <45HRC
Machining Operations: Side milling, Slot milling, Ramp milling, Interpolation milling
Machining Type: Roughing and finishing in one operation

High-Efficiency General-Purpose 4F Square End Mill for Steel
Application： Material: Carbon steel, Alloy steel, Tool steel, Stainless steel, Cast iron, High-hardness steel <45HRC Machining Operations: Side milling, Slot milling, Ramp milling, Interpolation milling Machining Type: Roughing and finishing in one operation
Specification	Flute Dia (mm)	Flute Length (mm)	Shank Dia (mm)	Overall Length (mm)	PIC
D1×3×D4×50L	1.0	3	4	50
D1.5×5×D4×50L	1.5	5	4	50
D2×6×D4×50L	2	6	4	50
D2.5×8×D4×50L	2.5	8	4	50
D3×9×D3×50L	3	9	3	50
D3×9×D4×50L	3	9	4	50
D4×12×D4×50L	4	12	4	50
D5×13×D6×50L	5	13	6	50
D6×15×D6×50L	6	15	6	50
D8×24×D8×60L	8	24	8	60
D10×30×D10×75L	10	30	10	75
D12×36×D12×75L	12	36	12	75
D14×45×D14×100L	14	45	14	100
D16×45×D16×100L	16	45	16	100
D20×45×D20×100L	20	45	20	100
D4×16×D4×75L	4	16	4	75
D6×24×D6×75L	6	24	6	75
D8×25×D8×75L	8	25	8	75
D4×20×D4×100L	4	20	4	100
D6×30×D6×100L	6	30	6	100
D8×35×D8×100L	8	35	8	100
D10×50×D10×100L	10	50	10	100
D12×50×D12×100L	12	50	12	100
D16×70×D16×150L	16	70	16	150
