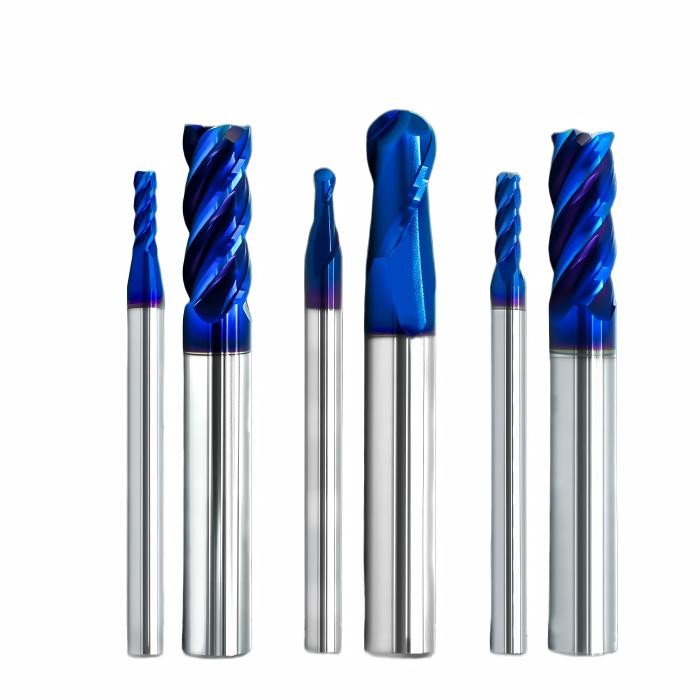

HRC65 Series Carbide End Mills are made from 0.4μm micro-grain carbide with 12% cobalt and feature a nano blue ALCrSiN coating for excellent heat and wear resistance. Optimized for side milling and semi-finishing to finishing of alloy steel, tool steel, and stainless steel up to HRC 52. Available in square, ball nose, and corner radius types with standard sizes in stock.
HRC65 Square End Mill for Steel 4F
| Specification | Flute Dia (mm) | Flute Length (mm) | Shank Dia (mm) | Overall Length (mm) | |
| D1×3×D4×50L | 1.0 | 3 | 4 | 50 | |
| D1.5×4.5×D4×50L | 1.5 | 4.5 | 4 | 50 | |
| D2×6×D4×50L | 2.0 | 6 | 4 | 50 | |
| D2.5×7×D4×50L | 2.5 | 7 | 4 | 50 | |
| D3×9×D4×50L | 3.0 | 9 | 4 | 50 | |
| D4×10×D4×50L | 4.0 | 10 | 4 | 50 | |
| D3×12×D3×75L | 3.0 | 12 | 4 | 75 | |
| D3×15×D3×100L | 3.0 | 15 | 4 | 100 | |
| D4×16×D4×75L | 4.0 | 16 | 4 | 75 | |
| D4×20×D4×100L | 4.0 | 20 | 4 | 100 | |
| D5×13×D6×50L | 5.0 | 13 | 6 | 50 | |
| D6×15×D6×50L | 6.0 | 15 | 6 | 50 | |
| D5×20×D5×75L | 5.0 | 20 | 5 | 75 | |
| D5×25×D5×100L | 5.0 | 25 | 6 | 100 | |
| D6×24×D6×75L | 6.0 | 24 | 6 | 75 | |
| D6×30×D6×100L | 6.0 | 30 | 8 | 100 | |
| D8×20×D8×60L | 8.0 | 20 | 8 | 60 | |
| D8×30×D8×75L | 8.0 | 30 | 8 | 75 | |
| D8×35×D8×100L | 8.0 | 35 | 8 | 100 | |
| D10×25×D10×75L | 10.0 | 25 | 10 | 75 | |
| D10×40×D10×100L | 10.0 | 40 | 10 | 100 | |
| D12×30×D12×75L | 12.0 | 30 | 12 | 75 | |
| D12×45×D12×100L | 12.0 | 45 | 12 | 100 | |
| D14×45×D14×100L | 14.0 | 45 | 14 | 100 | |
| D16×45×D16×100L | 16.0 | 45 | 16 | 100 | |
| D18×45×D18×100L | 18.0 | 45 | 18 | 100 | |
| D20×45×D20×100L | 20.0 | 45 | 20 | 100 | |
| D6×45×D6×150L | 6.0 | 45 | 6 | 150 | |
| D8×50×D8×150L | 8.0 | 50 | 8 | 150 | |
| D10×60×D10×150L | 10.0 | 60 | 10 | 150 | |
| D12×60×D12×150L | 12.0 | 60 | 12 | 150 | |
| D14×70×D14×150L | 14.0 | 70 | 14 | 150 | |
| D16×75×D16×150L | 16.0 | 75 | 16 | 150 | |
| D18×75×D18×150L | 18.0 | 75 | 18 | 150 | |
| D20×75×D20×150L | 20.0 | 75 | 20 | 150 | |
HRC65 Ballnose End Mill for Steel 2F
| Specification | Flute Dia (mm) | Flute Length (mm) | Shank Dia (mm) | Overall Length (mm) | |
| R0.5×3×D4×50L | 1.0 | 2 | 4 | 50 | |
| R0.75×4.5×D4×50L | 1.5 | 3 | 4 | 50 | |
| R1.0×6×D4×50L | 2.0 | 4 | 4 | 50 | |
| R1.25×7×D4×50L | 2.5 | 5 | 4 | 50 | |
| R1.5×9×D4×50L | 3.0 | 6 | 4 | 50 | |
| R2.0×8×D4×50L | 4.0 | 8 | 4 | 50 | |
| R1.5×12×D3×75L | 3.0 | 6 | 4 | 75 | |
| R1.5×15×D3×100L | 3.0 | 6 | 4 | 100 | |
| R2.0×16×D4×75L | 4.0 | 8 | 4 | 75 | |
| R2.0×20×D4×100L | 4.0 | 8 | 4 | 100 | |
| R2.5×13×D6×50L | 5.0 | 10 | 6 | 50 | |
| R3.0×15×D6×50L | 6.0 | 12 | 6 | 50 | |
| R2.5×20×D5×75L | 5.0 | 10 | 5 | 75 | |
| R2.5×25×D5×100L | 5.0 | 10 | 6 | 100 | |
| R3.0×24×D6×75L | 6.0 | 12 | 6 | 75 | |
| R3.0×30×D6×100L | 6.0 | 12 | 8 | 100 | |
| R4.0×20×D8×60L | 8.0 | 16 | 8 | 60 | |
| R4.0×30×D8×75L | 8.0 | 16 | 8 | 75 | |
| R4.0×35×D8×100L | 8.0 | 16 | 8 | 100 | |
| R5.0×25×D10×75L | 10.0 | 20 | 10 | 75 | |
| R5.0×40×D10×100L | 10.0 | 20 | 10 | 100 | |
| R6.0×30×D12×75L | 12.0 | 24 | 12 | 75 | |
| R6.0×45×D12×100L | 12.0 | 24 | 12 | 100 | |
| R7.0×45×D14×100L | 14.0 | 28 | 14 | 100 | |
| R8.0×45×D16×100L | 16.0 | 32 | 16 | 100 | |
| R9.0×45×D18×100L | 18.0 | 36 | 18 | 100 | |
| R10.0×45×D20×100L | 20.0 | 40 | 20 | 100 | |
| R3.0×45×D6×150L | 6.0 | 12 | 6 | 150 | |
| R4.0×50×D8×150L | 8.0 | 16 | 8 | 150 | |
| R5.0×60×D10×150L | 10.0 | 20 | 10 | 150 | |
| R6.0×60×D12×150L | 12.0 | 24 | 12 | 150 | |
| R7.0×70×D14×150L | 14.0 | 28 | 14 | 150 | |
| R8.0×75×D16×150L | 16.0 | 32 | 16 | 150 | |
| R9.0×75×D18×150L | 18.0 | 36 | 18 | 150 | |
| R10.0×75×D20×150L | 20.0 | 40 | 20 | 150 | |
HRC65 Corner Radius End Mill for Steel 4F
| Specification | Flute Dia (mm) | Flute Length (mm) | Shank Dia (mm) | Overall Length (mm) | |
| D1R0.2×3×D4×50L | 1R0.2 | 3 | 4 | 50 | |
| D1.5R0.2×4.5×D4×50L | 1.5R0.2 | 4.5 | 4 | 50 | |
| D2R0.2×6×D4×50L | 2R0.2 | 6 | 4 | 50 | |
| D2R0.5×6×D4×50L | 2R0.5 | 6 | 4 | 50 | |
| D3R0.2×9×D4×50L | 3R0.2 | 9 | 4 | 50 | |
| D3R0.5×9×D4×50L | 3R0.5 | 9 | 4 | 50 | |
| D3R0.5×9×D3×50L | 3R0.5 | 9 | 3 | 50 | |
| D3R1×9×D4×50L | 3R1 | 9 | 4 | 50 | |
| D3R1×9×D3×50L | 3R1 | 9 | 3 | 50 | |
| D3R1×12×D3×75L | 3R1 | 12 | 3 | 75 | |
| D4R0.2×10×D4×50L | 4R0.2 | 10 | 4 | 50 | |
| D4R0.5×10×D4×50L | 4R0.5 | 10 | 4 | 50 | |
| D4R0.5×14×D4×75L | 4R0.5 | 14 | 4 | 75 | |
| D4R0.5×15×D4×100L | 4R0.5 | 15 | 4 | 100 | |
| D6R0.5×15×D6×50L | 6R0.5 | 15 | 6 | 50 | |
| D6R0.5×20×D6×75L | 6R0.5 | 20 | 6 | 75 | |
| D6R0.5×25×D6×100L | 6R0.5 | 25 | 6 | 100 | |
| D6R1×15×D6×50L | 6R1 | 15 | 6 | 50 | |
| D6R1×20×D6×75L | 6R1 | 20 | 6 | 75 | |
| D6R1×25×D6×100L | 6R1 | 25 | 6 | 100 | |
| D8R0.5×20×D8×60L | 8R0.5 | 20 | 8 | 60 | |
| D8R0.5×25×D8×75L | 8R0.5 | 25 | 8 | 75 | |
| D8R0.5×30×D8×100L | 8R0.5 | 30 | 8 | 100 | |
| D8R1×20×D8×60L | 8R1 | 20 | 8 | 60 | |
| D8R1×25×D8×75L | 8R1 | 25 | 8 | 75 | |
| D8R1×30×D8×100L | 8R1 | 30 | 8 | 100 | |
| D10R0.5×25×D10×75L | 10R0.5 | 25 | 10 | 75 | |
| D10R0.5×30×D10×100L | 10R0.5 | 30 | 10 | 100 | |
| D10R1×25×D10×75L | 10R1 | 25 | 10 | 75 | |
| D10R1×30×D10×100L | 10R1 | 30 | 10 | 100 | |
| D12R0.5×30×D12×75L | 12R0.5 | 30 | 12 | 75 | |
| D12R0.5×35×D12×100L | 12R0.5 | 35 | 12 | 100 | |
| D12R1×30×D12×75L | 12R1 | 30 | 12 | 75 | |
