The ECO 2-flute carbide square end mill delivers efficient roughing to semi-finishing performance in a range of steels. Its durable AlTiSiN coating provides enhanced heat and wear resistance, making it suitable for machining carbon steel, cast iron, die steel, and stainless steel up to HRC 45. The two-flute design ensures ample chip clearance for improved material removal and smoother operation in slots and pockets. A cost-effective and reliable choice for general-purpose steel milling applications.

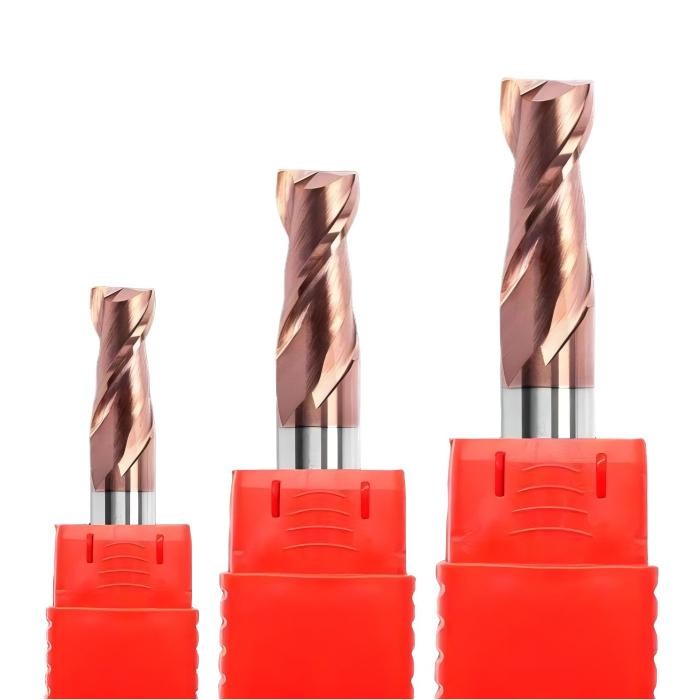

ECO 2 flutes carbide square/flat end mill for steel AlTiSiN coating
Application：Slot milling, Semi-finishing to rough machining of carbon steel, cast iron, die steel, and stainless steel with HRC ≤ 45.
| Specification | Flute Dia (mm) | Effective Length (mm) | Shank Dia (mm) | Overall Length (mm) | |
| D1×3×D4×50L | 1.0 | 3 | 4 | 50 | |
| D1.5×4.5×D4×50L | 1.5 | 4.5 | 4 | 50 | |
| D2.0×6×D4×50L | 2.0 | 6 | 4 | 50 | |
| D2.5×7.5×D4×50L | 2.5 | 7.5 | 4 | 50 | |
| D3.0×9×D3×50L | 3.0 | 9 | 3 | 50 | |
| D3.0×9×D4×50L | 3.0 | 9 | 4 | 50 | |
| D4.0×10×D4×50L | 4.0 | 10 | 4 | 50 | |
| D3×12×D3×75L | 3.0 | 12 | 3 | 75 | |
| D3×15×D3×100L | 3.0 | 15 | 3 | 100 | |
| D4×16×D4×75L | 4.0 | 16 | 4 | 75 | |
| D4×20×D4×100L | 4.0 | 20 | 4 | 100 | |
| D5.0×13×D5×50L | 5.0 | 13 | 5 | 50 | |
| D5.0×13×D6×50L | 5.0 | 13 | 6 | 50 | |
| D6.0×15×D6×50L | 6.0 | 15 | 6 | 50 | |
| D5×20×D5×75L | 5.0 | 20 | 5 | 75 | |
| D5×25×D5×100L | 5.0 | 25 | 5 | 100 | |
| D6×24×D6×75L | 6.0 | 24 | 6 | 75 | |
| D6×30×D6×100L | 6.0 | 30 | 6 | 100 | |
| D8×20×D8×60L | 8.0 | 20 | 8 | 60 | |
| D8×30×D8×75L | 8.0 | 30 | 8 | 75 | |
| D8×35×D8×100L | 8.0 | 35 | 8 | 100 | |
| D10×25×D10×75L | 10.0 | 25 | 10 | 75 | |
| D10×40×D10×100L | 10.0 | 40 | 10 | 100 | |
| D12×30×D12×75L | 12.0 | 30 | 12 | 75 | |
| D12×45×D12×100L | 12.0 | 45 | 12 | 100 | |
| D14×45×D14×100L | 14.0 | 45 | 14 | 100 | |
| D16×45×D16×100L | 16.0 | 45 | 16 | 100 | |
| D18×45×D18×100L | 18.0 | 45 | 18 | 100 | |
| D20×45×D20×100L | 20.0 | 45 | 20 | 100 | |
| D6×45×D6×150L | 6.0 | 45 | 6 | 150 | |
| D8×50×D8×150L | 8.0 | 50 | 8 | 150 | |
| D10×60×D10×150L | 10.0 | 60 | 10 | 150 | |
| D12×60×D12×150L | 12.0 | 60 | 12 | 150 | |
| D14×70×D14×150L | 14.0 | 70 | 14 | 150 | |
| D16×75×D16×150L | 16.0 | 75 | 16 | 150 | |
| D18×75×D18×150L | 18.0 | 75 | 18 | 150 | |
| D20×75×D20×150L | 20.0 | 75 | 20 | 150 | |
