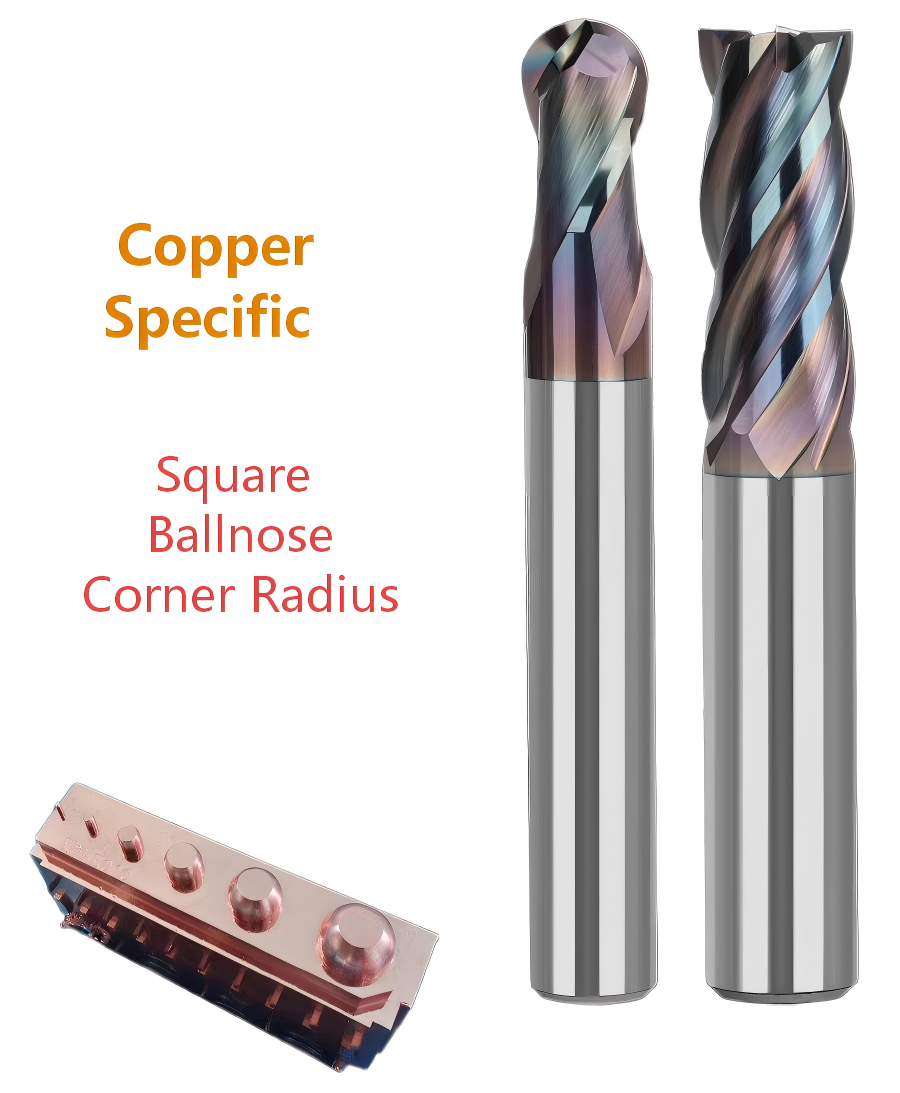

Copper-Specific Carbide End Mill designed for precision machining of copper electrodes and high-purity copper alloys. High-helix geometry and polished flutes ensure smooth chip evacuation, reduced adhesion, and superior surface finish. Ideal for EDM electrodes and high-accuracy copper components.
4F STANDARD FLAT END MILL FOR COPPER
| Code | Flute dia (D) | Shank dia | FL | NO.of flute (Z) | OAL | ||||||
| 1.0*4D*50L-4T | 1 | 4 | 3 | 4 | 50 | ||||||
| 1.2*4D*50L-4T | 1.2 | 4 | 3.6 | 4 | 50 | ||||||
| 1.3*4D*50L-4T | 1.3 | 4 | 3.9 | 4 | 50 | ||||||
| 1.5*4D*50L-4T | 1.5 | 4 | 4.5 | 4 | 50 | ||||||
| 1.6*4D*50L-4T | 1.6 | 4 | 4.8 | 4 | 50 | ||||||
| 1.8*4D*50L-4T | 1.8 | 4 | 5.4 | 4 | 50 | ||||||
| 2.0*4D*50L-4T | 2 | 4 | 6 | 4 | 50 | ||||||
| 2.5*4D*50L-4T | 2.5 | 4 | 8 | 4 | 50 | ||||||
| 3.0*3D*50L-4T | 3 | 3 | 9 | 4 | 50 | ||||||
| 3.0*4D*50L-4T | 3 | 4 | 9 | 4 | 50 | ||||||
| 3.5*4D*50L-4T | 3.5 | 4 | 11 | 4 | 50 | ||||||
| 4.0*4D*50L-4T | 4 | 4 | 12 | 4 | 50 | ||||||
| 5.0*5D*50L-4T | 5 | 5 | 15 | 4 | 50 | ||||||
| 5.0*6D*50L-4T | 5 | 6 | 15 | 4 | 50 | ||||||
| 6.0*6D*50L-4T | 6 | 6 | 18 | 4 | 50 | ||||||
| 8.0*8D*60L-4T | 8 | 8 | 24 | 4 | 60 | ||||||
| 10.0*10D*75L-4T | 10 | 10 | 30 | 4 | 75 | ||||||
| 12.0*12D*75L-4T | 12 | 12 | 36 | 4 | 75 | ||||||
| 4.0*4D*75L-4T | 4 | 4 | 16 | 4 | 75 | ||||||
| 6.0*6D*75L-4T | 6 | 6 | 24 | 4 | 75 | ||||||
| 8.0*8D*75L-4T | 8 | 8 | 32 | 4 | 75 | ||||||
| 4.0*4D*100L-4T | 4 | 4 | 16 | 4 | 100 | ||||||
| 6.0*6D*100L-4T | 6 | 6 | 24 | 4 | 100 | ||||||
| 8.0*8D*100L-4T | 8 | 8 | 32 | 4 | 100 | ||||||
| 10.0*10D*100L-4T | 10 | 10 | 40 | 4 | 100 | ||||||
| 12.0*12D*100L-4T | 12 | 12 | 45 | 4 | 100 |
2F STANDARD BALL END MILL FOR COPPER
| Code | Flute dia (D) | Shank dia | FL | NO.of flute (Z) | OAL | ||||||
| R0.5*4D*50L-2T | R0.5 | 4 | 2 | 2 | 50 | ||||||
| R0.75*4D*50L-2T | R0.75 | 4 | 3 | 2 | 50 | ||||||
| R1.0*4D*50L-2T | R1.0 | 4 | 4 | 2 | 50 | ||||||
| R1.25*4D*50L-2T | R1.25 | 4 | 5 | 2 | 50 | ||||||
| R1.5*3D*50L-2T | R1.5 | 3 | 6 | 2 | 50 | ||||||
| R1.5*4D*50L-2T | R1.5 | 4 | 6 | 2 | 50 | ||||||
| R2.0*4D*50L-2T | R2.0 | 4 | 6 | 2 | 50 | ||||||
| R2.5*5D*50L-2T | R2.5 | 5 | 8 | 2 | 50 | ||||||
| R2.5*6D*50L-2T | R2.5 | 6 | 8 | 2 | 50 | ||||||
| R3.0*6D*50L-2T | R3.0 | 6 | 9 | 2 | 50 | ||||||
| R4.0*8D*60L-2T | R4.0 | 8 | 12 | 2 | 60 | ||||||
| R5.0*10D*75L-2T | R5.0 | 10 | 15 | 2 | 75 | ||||||
| R6.0*12D*75L-2T | R6.0 | 12 | 18 | 2 | 75 | ||||||
| R2.0*4D*75L-2T | R2.0 | 4 | 6 | 2 | 75 | ||||||
| R3.0*6D*75L-2T | R3.0 | 6 | 9 | 2 | 75 | ||||||
| R4.0*8D*75L-2T | R4.0 | 8 | 12 | 2 | 75 | ||||||
| R2.0*4D*100L-2T | R2.0 | 4 | 6 | 2 | 100 | ||||||
| R3.0*6D*100L-2T | R3.0 | 6 | 9 | 2 | 100 | ||||||
| R4.0*8D*100L-2T | R4.0 | 8 | 12 | 2 | 100 | ||||||
| R5.0*10D*100L-2T | R5.0 | 10 | 15 | 2 | 100 | ||||||
| R6.0*12D*100L-2T | R6.0 | 12 | 18 | 2 | 100 |
4F RADIUS END MILL FOR COPPER
| Code | Flute dia (D) | R | Shank dia | FL | NO.of flute (Z) | OAL | |||||
| 1R0.05*4D*50L-4T | 1 | R0.05 | 4 | 3 | 4 | 50 | |||||
| 1R0.1*4D*50L-4T | 1 | R0.1 | 4 | 3 | 4 | 50 | |||||
| 1R0.2*4D*50L-4T | 1 | R0.2 | 4 | 3 | 4 | 50 | |||||
| 1.5R0.1*4D*50L-4T | 1.5 | R0.1 | 4 | 4 | 4 | 50 | |||||
| 1.5R0.2*4D*50L-4T | 1.5 | R0.2 | 4 | 4 | 4 | 50 | |||||
| 1.5R0.3*4D*50L-4T | 1.5 | R0.3 | 4 | 4 | 4 | 50 | |||||
| 2R0.1*4D*50L-4T | 2 | R0.1 | 4 | 6 | 4 | 50 | |||||
| 2R0.2*4D*50L-4T | 2 | R0.2 | 4 | 6 | 4 | 50 | |||||
| 2R0.3*4D*50L-4T | 2 | R0.3 | 4 | 6 | 4 | 50 | |||||
| 2R0.5*4D*50L-4T | 2 | R0.5 | 4 | 6 | 4 | 50 | |||||
| 3R0.2*3D*50L-4T | 3 | R0.2 | 3 | 8 | 4 | 50 | |||||
| 3R0.5*3D*50L-4T | 3 | R0.5 | 3 | 8 | 4 | 50 | |||||
| 3R0.1*4D*50L-4T | 3 | R0.1 | 4 | 8 | 4 | 50 | |||||
| 3R0.2*4D*50L-4T | 3 | R0.2 | 4 | 8 | 4 | 50 | |||||
| 3R0.3*4D*50L-4T | 3 | R0.3 | 4 | 8 | 4 | 50 | |||||
| 3R0.5*4D*50L-4T | 3 | R0.5 | 4 | 8 | 4 | 50 | |||||
| 3R1.0*4D*50L-4T | 3 | R1 | 4 | 8 | 4 | 50 | |||||
| 4R0.1*4D*50L-4T | 4 | R0.1 | 4 | 10 | 4 | 50 | |||||
| 4R0.2*4D*50L-4T | 4 | R0.2 | 4 | 10 | 4 | 50 | |||||
| 4R0.3*4D*50L-4T | 4 | R0.3 | 4 | 10 | 4 | 50 | |||||
| 4R0.5*4D*50L-4T | 4 | R0.5 | 4 | 10 | 4 | 50 | |||||
| 4R1.0*4D*50L-4T | 4 | R1 | 4 | 10 | 4 | 50 | |||||
| 6R0.1*6D*50L-4T | 6 | R0.1 | 6 | 15 | 4 | 50 | |||||
| 6R0.2*6D*50L-4T | 6 | R0.2 | 6 | 15 | 4 | 50 | |||||
| 6R0.3*6D*50L-4T | 6 | R0.3 | 6 | 15 | 4 | 50 | |||||
| 6R0.5*6D*50L-4T | 6 | R0.5 | 6 | 15 | 4 | 50 | |||||
| 6R1.0*6D*50L-4T | 6 | R1 | 6 | 15 | 4 | 50 | |||||
| 8R0.2*8D*60L-4T | 8 | R0.2 | 8 | 20 | 4 | 60 | |||||
| 8R0.5*8D*60L-4T | 8 | R0.5 | 8 | 20 | 4 | 60 | |||||
| 8R1.0*8D*60L-4T | 8 | R1 | 8 | 20 | 4 | 60 | |||||
| 10R0.2*10D*75L-4T | 10 | R0.2 | 10 | 25 | 4 | 75 | |||||
| 10R0.5*10D*75L-4T | 10 | R0.5 | 10 | 25 | 4 | 75 | |||||
| 10R1.0*10D*75L-4T | 10 | R1 | 10 | 25 | 4 | 75 | |||||
| 10R2.0*10D*75L-4T | 10 | R2 | 10 | 25 | 4 | 75 | |||||
| 12R0.5*12D*75L-4T | 12 | R0.5 | 12 | 30 | 4 | 75 | |||||
| 12R1.0*12D*75L-4T | 12 | R1 | 12 | 30 | 4 | 75 | |||||
4F LONG RADIUS END MILL FOR COPPER
| Code | Flute dia (D) | R | Shank dia | FL | NO.of flute (Z) | OAL | |||||
| 4R0.2*4D*75L-4T | 4 | R0.2 | 4 | 10 | 4 | 75 | |||||
| 4R0.5*4D*75L-4T | 4 | R0.5 | 4 | 10 | 4 | 75 | |||||
| 6R0.2*6D*75L-4T | 6 | R0.2 | 6 | 15 | 4 | 75 | |||||
| 6R0.5*6D*75L-4T | 6 | R0.5 | 6 | 15 | 4 | 75 | |||||
| 8R0.2*8D*75L-4T | 8 | R0.5 | 8 | 20 | 4 | 75 | |||||
| 8R0.5*8D*75L-4T | 8 | R0.5 | 8 | 20 | 4 | 75 | |||||
| 8R1.0*8D*75L-4T | 8 | R1.0 | 8 | 20 | 4 | 75 | |||||
| 4R0.5*4D*100L-4T | 4 | R0.5 | 4 | 10 | 4 | 100 | |||||
| 6R0.5*6D*100L-4T | 6 | R0.5 | 6 | 15 | 4 | 100 | |||||
| 8R0.5*8D*100L-4T | 8 | R0.5 | 8 | 20 | 4 | 100 | |||||
| 8R1.0*8D*100L-4T | 8 | R1.0 | 8 | 20 | 4 | 100 | |||||
| 10R0.5*10D*100L-4T | 10 | R0.5 | 10 | 25 | 4 | 100 | |||||
| 10R1.0*10D*100L-4T | 10 | R1.0 | 10 | 25 | 4 | 100 | |||||
| 12R0.5*12D*100L-4T | 12 | R0.5 | 12 | 30 | 4 | 100 | |||||
| 12R1.0*12D*100L-4T | 12 | R1.0 | 12 | 30 | 4 | 100 | |||||
