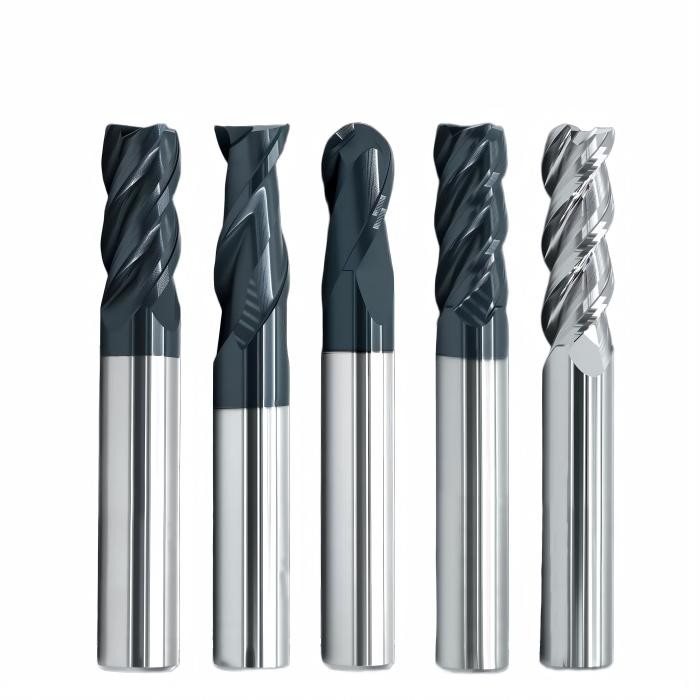

The GM Series Carbide End Mills are precision-engineered cutting tools for steel and aluminum machining. Our stock includes:
Steel Applications：
4-flute square end mills
2-flute square end mills
4-flute corner radius end mills
2-flute ball nose end mills
Aluminum Applications：
3-flute square end mills
GM Series Carbide End Mill 0.4μm Co 12%
Steel end mills feature ALCrSiN Nano black coating (0.4μm) with a 35° helix angle, divided flutes, and back-cut design. They are optimized for side milling, shallow slot milling, and roughing to semi-finishing of HRC ≤ 52 alloy steels, mold steels, and stainless steel. Aluminum end mills are ideal for finish aluminum machining with high gross.
These GM Series end mills provide excellent chip evacuation, long tool life, and superior surface finish, making them reliable for mold, die, and precision component manufacturing.
Square End Mill for Steel 2F / 4F/Aluminium 3F
| Specification | Flute Dia (mm) | Flute Length (mm) | Shank Dia (mm) | Overall Length (mm) | |
| D1×3×D4×50L | 1.0 | 3 | 4 | 50 | |
| D1.5×4.5×D4×50L | 1.5 | 4.5 | 4 | 50 | |
| D2×6×D4×50L | 2.0 | 6 | 4 | 50 | |
| D2.5×7×D4×50L | 2.5 | 7 | 4 | 50 | |
| D3×9×D3×50L | 3.0 | 9 | 3 | 50 | |
| D3×9×D4×50L | 3.0 | 9 | 4 | 50 | |
| D4×10×D4×50L | 4.0 | 10 | 4 | 50 | |
| D3×12×D3×75L | 3.0 | 12 | 3 | 75 | |
| D3×15×D3×100L | 3.0 | 15 | 3 | 100 | |
| D4×16×D4×75L | 4.0 | 16 | 4 | 75 | |
| D4×20×D4×100L | 4.0 | 20 | 4 | 100 | |
| D5×13×D5×50L | 5.0 | 13 | 5 | 50 | |
| D5×13×D6×50L | 5.0 | 13 | 6 | 50 | |
| D6×15×D6×50L | 6.0 | 15 | 6 | 50 | |
| D5×20×D5×75L | 5.0 | 20 | 5 | 75 | |
| D5×25×D5×100L | 5.0 | 25 | 5 | 100 | |
| D6×24×D6×75L | 6.0 | 24 | 6 | 75 | |
| D6×30×D6×100L | 6.0 | 30 | 6 | 100 | |
| D8×20×D8×60L | 8.0 | 20 | 8 | 60 | |
| D8×30×D8×75L | 8.0 | 30 | 8 | 75 | |
| D8×35×D8×100L | 8.0 | 35 | 8 | 100 | |
| D10×25×D10×75L | 10.0 | 25 | 10 | 75 | |
| D10×40×D10×100L | 10.0 | 40 | 10 | 100 | |
| D12×30×D12×75L | 12.0 | 30 | 12 | 75 | |
| D12×45×D12×100L | 12.0 | 45 | 12 | 100 | |
| D14×45×D14×100L | 14.0 | 45 | 14 | 100 | |
| D16×45×D16×100L | 16.0 | 45 | 16 | 100 | |
| D18×45×D18×100L | 18.0 | 45 | 18 | 100 | |
| D20×45×D20×100L | 20.0 | 45 | 20 | 100 | |
| D6×45×D6×150L | 6.0 | 45 | 6 | 150 | |
| D8×50×D8×150L | 8.0 | 50 | 8 | 150 | |
| D10×60×D10×150L | 10.0 | 60 | 10 | 150 | |
| D12×60×D12×150L | 12.0 | 60 | 12 | 150 | |
| D14×70×D14×150L | 14.0 | 70 | 14 | 150 | |
| D16×75×D16×150L | 16.0 | 75 | 16 | 150 | |
| D18×75×D18×150L | 18.0 | 75 | 18 | 150 | |
| D20×75×D20×150L | 20.0 | 75 | 20 | 150 | |
Ballnose End Mill for Steel 2F
| Specification | Flute Dia (mm) | Flute Length (mm) | Shank Dia (mm) | Overall Length (mm) | |
| D1×2×D4×50L | 1 | 2 | 4 | 50 | |
| D1.5×3×D4×50L | 1.5 | 3 | 4 | 50 | |
| D2.0×4×D4×50L | 2 | 4 | 4 | 50 | |
| D3.0×6×D4×50L | 3 | 6 | 4 | 50 | |
| D4.0×8×D4×50L | 4 | 8 | 4 | 50 | |
| D3×6×D3×75L | 3 | 6 | 3 | 75 | |
| D3×6×D3×100L | 3 | 6 | 3 | 100 | |
| D4×8×D4×75L | 4 | 8 | 4 | 75 | |
| D4×8×D4×100L | 4 | 8 | 4 | 100 | |
| D5.0×10×D6×50L | 5 | 10 | 6 | 50 | |
| D6.0×12×D6×50L | 6 | 12 | 6 | 50 | |
| D5×10×D5×75L | 5 | 10 | 5 | 75 | |
| D5×10×D5×100L | 5 | 10 | 5 | 100 | |
| D6×12×D6×75L | 6 | 12 | 6 | 75 | |
| D6×12×D6×100L | 6 | 12 | 6 | 100 | |
| D8×16×D8×60L | 8 | 16 | 8 | 60 | |
| D8×16×D8×75L | 8 | 16 | 8 | 75 | |
| D8×16×D8×100L | 8 | 16 | 8 | 100 | |
| D10×20×D10×75L | 10 | 20 | 10 | 75 | |
| D10×20×D10×100L | 10 | 20 | 10 | 100 | |
| D12×24×D12×75L | 12 | 24 | 12 | 75 | |
| D12×24×D12×100L | 12 | 24 | 12 | 100 | |
| D14×28×D14×100L | 14 | 28 | 14 | 100 | |
| D16×32×D16×100L | 16 | 32 | 16 | 100 | |
| D18×36×D18×100L | 18 | 36 | 18 | 100 | |
| D20×40×D20×100L | 20 | 40 | 20 | 100 | |
| D6×12×D6×150L | 6 | 12 | 6 | 150 | |
| D8×16×D8×150L | 8 | 16 | 8 | 150 | |
| D10×20×D10×150L | 10 | 20 | 10 | 150 | |
| D12×24×D12×150L | 12 | 24 | 12 | 150 | |
| D14×28×D14×150L | 14 | 28 | 14 | 150 | |
| D16×32×D16×150L | 16 | 32 | 16 | 150 | |
| D18×36×D18×150L | 18 | 36 | 18 | 150 | |
| D20×40×D20×150L | 20 | 40 | 20 | 150 | |
Corner Radius End Mill for Steel 4F
| Specification | Flute Dia (mm) | Flute Length (mm) | Shank Dia (mm) | Overall Length (mm) | |
| D1R0.2×3×D4×50L | 1R0.2 | 3 | 4 | 50 | |
| D1.5R0.2×4.5×D4×50L | 1.5R0.2 | 4.5 | 4 | 50 | |
| D2R0.2×6×D4×50L | 2R0.2 | 6 | 4 | 50 | |
| D2R0.5×6×D4×50L | 2R0.5 | 6 | 4 | 50 | |
| D3R0.2×9×D4×50L | 3R0.2 | 9 | 4 | 50 | |
| D3R0.5×9×D4×50L | 3R0.5 | 9 | 4 | 50 | |
| D3R0.5×9×D3×50L | 3R0.5 | 9 | 3 | 50 | |
| D3R1×9×D4×50L | 3R1 | 9 | 4 | 50 | |
| D3R1×9×D3×50L | 3R1 | 9 | 3 | 50 | |
| D3R1×12×D3×75L | 3R1 | 12 | 3 | 75 | |
| D4R0.2×10×D4×50L | 4R0.2 | 10 | 4 | 50 | |
| D4R0.5×10×D4×50L | 4R0.5 | 10 | 4 | 50 | |
| D4R0.5×14×D4×75L | 4R0.5 | 14 | 4 | 75 | |
| D4R0.5×15×D4×100L | 4R0.5 | 15 | 4 | 100 | |
| D6R0.5×15×D6×50L | 6R0.5 | 15 | 6 | 50 | |
| D6R0.5×20×D6×75L | 6R0.5 | 20 | 6 | 75 | |
| D6R0.5×25×D6×100L | 6R0.5 | 25 | 6 | 100 | |
| D6R1×15×D6×50L | 6R1 | 15 | 6 | 50 | |
| D6R1×20×D6×75L | 6R1 | 20 | 6 | 75 | |
| D6R1×25×D6×100L | 6R1 | 25 | 6 | 100 | |
| D8R0.5×20×D8×60L | 8R0.5 | 20 | 8 | 60 | |
| D8R0.5×25×D8×75L | 8R0.5 | 25 | 8 | 75 | |
| D8R0.5×30×D8×100L | 8R0.5 | 30 | 8 | 100 | |
| D8R1×20×D8×60L | 8R1 | 20 | 8 | 60 | |
| D8R1×25×D8×75L | 8R1 | 25 | 8 | 75 | |
| D8R1×30×D8×100L | 8R1 | 30 | 8 | 100 | |
| D10R0.5×25×D10×75L | 10R0.5 | 25 | 10 | 75 | |
| D10R0.5×30×D10×100L | 10R0.5 | 30 | 10 | 100 | |
| D10R1×25×D10×75L | 10R1 | 25 | 10 | 75 | |
| D10R1×30×D10×100L | 10R1 | 30 | 10 | 100 | |
| D12R0.5×30×D12×75L | 12R0.5 | 30 | 12 | 75 | |
| D12R0.5×35×D12×100L | 12R0.5 | 35 | 12 | 100 | |
| D12R1×30×D12×75L | 12R1 | 30 | 12 | 75 | |
| D12R1×35×D12×100L | 12R1 | 35 | 12 | 100 | |
