Solid carbide ball nose end mill for OEM and ODM supply
Optimized for 3D contouring, profiling, and semi-finishing
Suitable for machining cast iron, alloy steel, and carbon steel (≤ HRC 45)
AlTiSiN coating provides high thermal stability and wear resistance
2-flute geometry ensures smooth chip evacuation and stable cutting
Consistent surface finish for mold and die applications
Available for private labeling and customized packaging
Custom sizes, tolerances, and coatings available upon request
Stable quality control for mass production and long-term supply

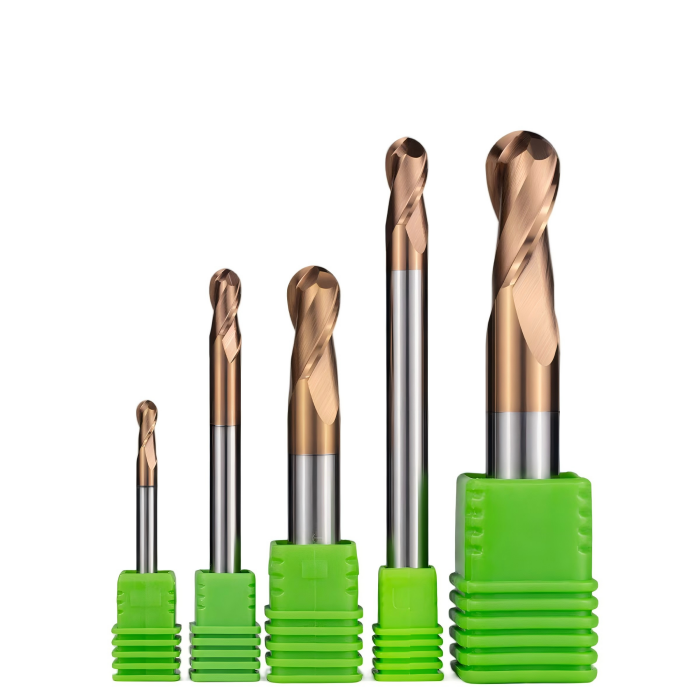

ECO Carbide 2 Flutes Ballnose End Mill for Steel
| Specification | Flute Dia (mm) | Flute Length (mm) | Shank Dia (mm) | Overall Length (mm) | |
| R0.5×2×D4×50L | 1 | 2 | 4 | 50 | |
| R0.75×3×D4×50L | 1.5 | 3 | 4 | 50 | |
| R1.0×4×D4×50L | 2 | 4 | 4 | 50 | |
| R1.5×6×D4×50L | 3 | 6 | 4 | 50 | |
| R2.0×8×D4×50L | 4 | 8 | 4 | 50 | |
| R1.5×6×D3×75L | 3 | 6 | 3 | 75 | |
| R1.5×6×D3×100L | 3 | 6 | 3 | 100 | |
| R2.0×8×D4×75L | 4 | 8 | 4 | 75 | |
| R2.0×8×D4×100L | 4 | 8 | 4 | 100 | |
| R2.5×10×D6×50L | 5 | 10 | 6 | 50 | |
| R3.0×12×D6×50L | 6 | 12 | 6 | 50 | |
| R2.5×10×D5×75L | 5 | 10 | 5 | 75 | |
| R2.5×10×D5×100L | 5 | 10 | 5 | 100 | |
| R3.0×12×D6×75L | 6 | 12 | 6 | 75 | |
| R3.0×12×D6×100L | 6 | 12 | 6 | 100 | |
| R4.0×16×D8×60L | 8 | 16 | 8 | 60 | |
| R4.0×16×D8×75L | 8 | 16 | 8 | 75 | |
| R4.0×16×D8×100L | 8 | 16 | 8 | 100 | |
| R5.0×20×D10×75L | 10 | 20 | 10 | 75 | |
| R5.0×20×D10×100L | 10 | 20 | 10 | 100 | |
| R6.0×24×D12×75L | 12 | 24 | 12 | 75 | |
| R6.0×24×D12×100L | 12 | 24 | 12 | 100 | |
| R7.0×28×D14×100L | 14 | 28 | 14 | 100 | |
| R8.0×32×D16×100L | 16 | 32 | 16 | 100 | |
| R9.0×36×D18×100L | 18 | 36 | 18 | 100 | |
| R10.0×40×D20×100L | 20 | 40 | 20 | 100 | |
| R3.0×12×D6×150L | 6 | 12 | 6 | 150 | |
| R4.0×16×D8×150L | 8 | 16 | 8 | 150 | |
| R5.0×20×D10×150L | 10 | 20 | 10 | 150 | |
| R6.0×24×D12×150L | 12 | 24 | 12 | 150 | |
| R7.0×28×D14×150L | 14 | 28 | 14 | 150 | |
| R8.0×32×D16×150L | 16 | 32 | 16 | 150 | |
| R9.0×36×D18×150L | 18 | 36 | 18 | 150 | |
| R10.0×40×D20×150L | 20 | 40 | 20 | 150 | |
