This high-performance 4-flute flat end mill is specifically engineered for demanding applications. It excels in machining austenitic stainless steels (304, 316, 316L), titanium alloys, and high-temperature alloys (Inconel, etc.).

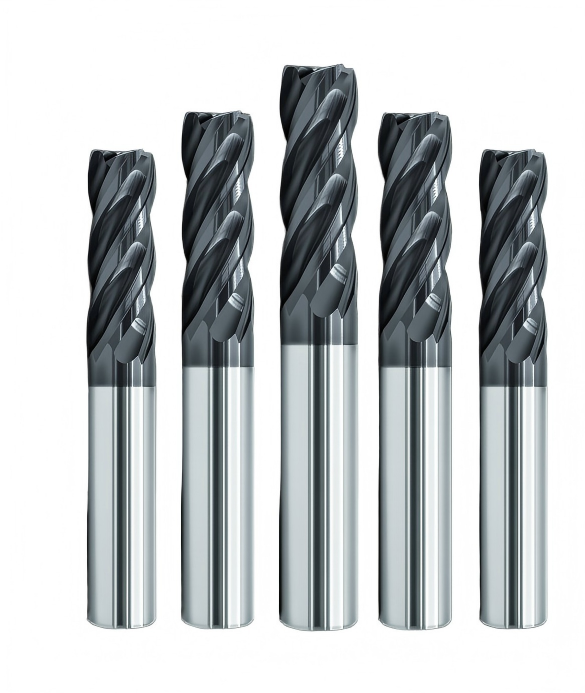

SUS Carbide Square End Mill Variable Helix Unequal Flute
Application：
Material: Stainless steel, Titanium alloy, High-temperature alloy
Machining Operations: Side milling, slot milling, ramp milling, interpolation milling
Machining Type: Roughing and finishing in one operation
| Specification | Flute Dia (mm) | Flute Length (mm) | Shank Dia (mm) | Overall Length (mm) | |
| D1×3×D4×50L | 1 | 3 | 4 | 50 | |
| D1.5×4.5×D4×50L | 1.5 | 4.5 | 4 | 50 | |
| D2×6×D4×50L | 2 | 6 | 4 | 50 | |
| D2.5×7.5×D4×50L | 2.5 | 7.5 | 4 | 50 | |
| D3×9×D4×50L | 3 | 9 | 4 | 50 | |
| D4×10×D4×50L | 4 | 10 | 4 | 50 | |
| D4×16×D4×75L | 4 | 16 | 4 | 75 | |
| D4×20×D4×100L | 4 | 20 | 4 | 100 | |
| D5×13×D6×50L | 5 | 13 | 6 | 50 | |
| D6×15×D6×50L | 6 | 15 | 6 | 50 | |
| D6×24×D6×75L | 6 | 24 | 6 | 75 | |
| D6×30×D6×100L | 6 | 30 | 6 | 100 | |
| D8×20×D8×60L | 8 | 20 | 8 | 60 | |
| D8×30×D8×75L | 8 | 30 | 8 | 75 | |
| D8×35×D8×100L | 8 | 35 | 8 | 100 | |
| D10×25×D10×75L | 10 | 25 | 10 | 75 | |
| D10×40×D10×100L | 10 | 40 | 10 | 100 | |
| D12×30×D12×75L | 12 | 30 | 12 | 75 | |
| D12×45×D12×100L | 12 | 45 | 12 | 100 | |
| D14×45×D14×100L | 14 | 45 | 14 | 100 | |
| D16×45×D16×100L | 16 | 45 | 16 | 100 | |
| D20×45×D20×100L | 20 | 45 | 20 | 100 | |
