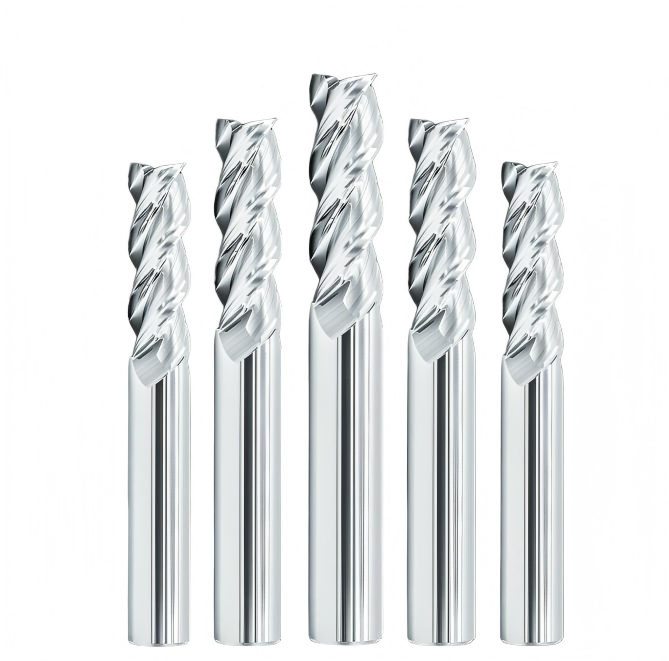

High-Gloss Finishing End Mill delivers flawless, mirror-like surfaces on aluminum. Crafted from ultra-fine 0.6μm carbide, its optimized 3-flute geometry ensures efficient chip evacuation, minimizes friction and built-up edge, and guarantees exceptional edge sharpness for reduced polishing time and extended tool life—ideal for critical finishing in aerospace, automotive, and electronics.
High-Gloss Finishing Flat End Mill for Aluminum 3F Application：
Material: All series of aluminum, aluminum alloys, non-ferrous metals
Machining Operations: Side milling, slot milling, ramp milling, interpolation milling
Machining Type: Semi-finishing and finishing
| Specification | Flute Dia (mm) | Flute Length (mm) | Shank Dia (mm) | Overall Length (mm) | |
| D1×3×D4×50L | 1 | 3 | 4 | 50 | |
| D1.5×4.5×D4×50L | 1.5 | 4.5 | 4 | 50 | |
| D2×6×D4×50L | 2 | 6 | 4 | 50 | |
| D2.5×7.5×D4×50L | 2.5 | 7.5 | 4 | 50 | |
| D3×9×D3×50L | 3 | 9 | 3 | 50 | |
| D3×9×D4×50L | 3 | 9 | 4 | 50 | |
| D4×12×D4×50L | 4 | 12 | 4 | 50 | |
| D5×15×D6×50L | 5 | 15 | 6 | 50 | |
| D6×18×D6×50L | 6 | 18 | 6 | 50 | |
| D8×24×D8×60L | 8 | 24 | 8 | 60 | |
| D10×30×D10×75L | 10 | 30 | 10 | 75 | |
| D12×36×D12×75L | 12 | 36 | 12 | 75 | |
| D14×45×D14×100L | 14 | 45 | 14 | 100 | |
| D16×50×D16×100L | 16 | 50 | 16 | 100 | |
| D20×50×D20×100L | 20 | 50 | 20 | 100 | |
| D4×15×D4×75L | 4 | 15 | 4 | 75 | |
| D6×20×D6×75L | 6 | 20 | 6 | 75 | |
| D8×30×D8×75L | 8 | 30 | 8 | 75 | |
| D4×16×D4×100L | 4 | 16 | 4 | 100 | |
| D6×25×D6×100L | 6 | 25 | 6 | 100 | |
| D8×32×D8×100L | 8 | 32 | 8 | 100 | |
| D10×45×D10×100L | 10 | 45 | 10 | 100 | |
| D12×55×D12×100L | 12 | 55 | 12 | 100 | |
| D16×70×D16×150L | 16 | 70 | 16 | 150 | |
