This high-efficiency 3-flute square end mill for aluminum features a unique U-flute design that ensures strong chip evacuation and rapid material removal. Available uncoated or with a DLC coating to minimize adhesion and extend tool life, it is ideal for dynamic milling, pocketing, and shoulder milling—delivering high MRR and stability for automotive, aerospace, and general manufacturing applications.

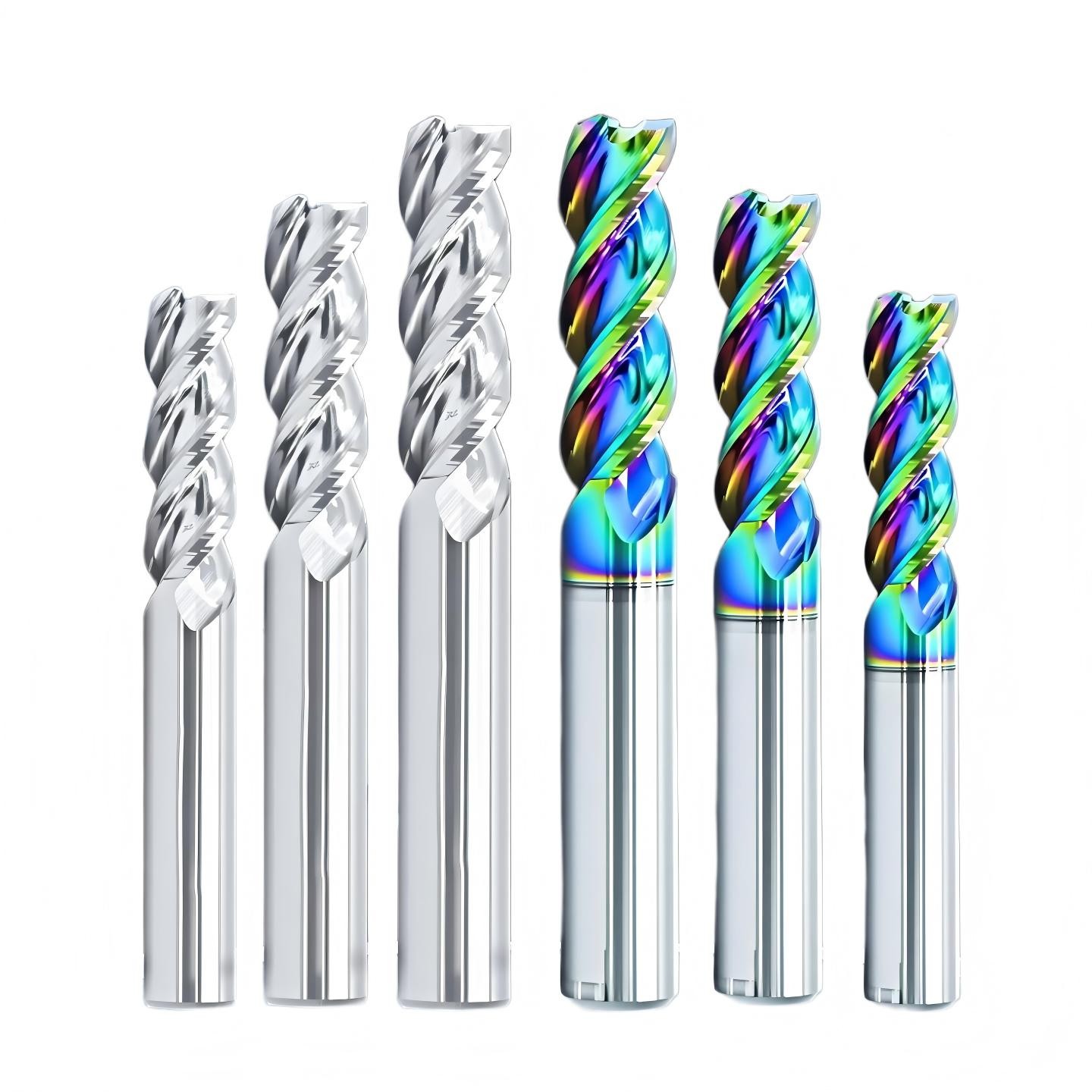

High-Efficiency End Mill for Aluminum 3F U Shape (Uncoated/DLC coating)
Application：
Material: All series of aluminum, aluminum alloys, non-ferrous metals, copper
Machining Operations: Side milling, slot milling, ramp milling, interpolation milling
Machining Type: Semi-finishing and roughing
| Specification | Flute Dia (mm) | Flute Length (mm) | Shank Dia (mm) | Overall Length (mm) | |
| D1×3×D4×50L×3F | 1 | 3 | 4 | 50 | |
| D1.5×4.5×D4×50L×3F | 1.5 | 4.5 | 4 | 50 | |
| D2×6×D4×50L×3F | 2 | 6 | 4 | 50 | |
| D2.5×7.5×D4×50L×3F | 2.5 | 7.5 | 4 | 50 | |
| D3×9×D4×50L×3F | 3 | 9 | 4 | 50 | |
| D4×12×D4×50L×3F | 4 | 12 | 4 | 50 | |
| D4×16×D4×75L×3F | 4 | 16 | 4 | 75 | |
| D4×20×D4×100L×3F | 4 | 20 | 4 | 100 | |
| D5×15×D6×50L×3F | 5 | 15 | 6 | 50 | |
| D6×18×D6×50L×3F | 6 | 18 | 6 | 50 | |
| D6×24×D6×75L×3F | 6 | 24 | 6 | 75 | |
| D6×30×D6×100L×3F | 6 | 30 | 6 | 100 | |
| D8×24×D8×60L×3F | 8 | 24 | 8 | 60 | |
| D8×30×D8×75L×3F | 8 | 30 | 8 | 75 | |
| D8×35×D8×100L×3F | 8 | 35 | 8 | 100 | |
| D10×30×D10×75L×3F | 10 | 30 | 10 | 75 | |
| D10×45×D10×100L×3F | 10 | 45 | 10 | 100 | |
| D12×35×D12×75L×3F | 12 | 35 | 12 | 75 | |
| D12×45×D12×100L×3F | 12 | 45 | 12 | 100 | |
| D14×45×D14×100L×3F | 14 | 45 | 14 | 100 | |
| D16×45×D16×100L×3F | 16 | 45 | 16 | 100 | |
| D20×45×D20×100L×3F | 20 | 45 | 20 | 100 | |
| D6×45×D6×150L×3F | 6 | 45 | 6 | 150 | |
| D8×50×D8×150L×3F | 8 | 50 | 8 | 150 | |
| D10×60×D10×150L×3F | 10 | 60 | 10 | 150 | |
| D12×60×D12×150L×3F | 12 | 60 | 12 | 150 | |
| D14×75×D14×150L×3F | 14 | 75 | 14 | 150 | |
| D16×75×D16×150L×3F | 16 | 75 | 16 | 150 | |
| D20×75×D20×150L×3F | 20 | 75 | 20 | 150 | |
